Filter Housings

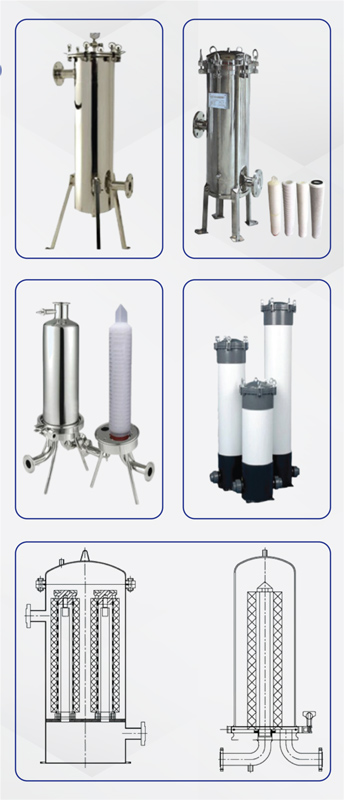

Download Product CatalogueCartridge Filter Housings
Sizes ( Cartridge Filter Housing Suitable For
- 1 to 500 cartridges in a single housing
- Cartridge diameters: 2", 2.5", 4", 6", & 8"
- Cartridge lengths: 10", 20", 30", & 40"
Flow Rate
- Capacity : Up to 2000 m3/hr & more
Material Of Construction
- SS 316L SS 316 SS 304 Mild Steel
- Mild Steel
- Polypropylene on any metal
- Rubber lining on any metal
- Teflon lining on any metal
- Teflon coating on any metal
Type Of Fitting (Cartridge)
- Double Open End (DOE) Type
- Code 7 (226 O Ring) Design
- Code 3 (226 O Ring) Design
- NPT Threaded Connection Type
End Connection
- NPT / BSP Threaded
- Flanged Table E / Table F
- ANSI B 16.5 Flanged
- DIN Standard
- Tri Clover Adaptors
Gasket / O Ring Material
- Neoprene
- Nitrile
- Silicone
- Viton
- EPDM
- PTFE
- Spiral Wound
- BUNA
BAG FILTER HOUSING
TECHNICAL SPECIFICATIONS:
| Diameter in inch. | Length in inch. | No. of Bags Per Housing |
|---|---|---|
| 4" Dia | 10" Long | 1 No |
| 4" Dia | 20" Long | 1 No |
| 7" Dia | 16" Long | 1 No |
| 7" Dia | 32" Long | 1 No |
| 7" Dia | 32" Long | 2 No |
| 7" Dia | 32" Long | 3 No |
| 7" Dia | 32" Long | 4 No |
| 7" Dia | 32" Long | 5 No |
| 7" Dia | 32" Long | 6 No |
| 7" Dia | 32" Long | 7 No |
| 7" Dia | 32" Long | 9 No |
Flow Rate
- Capacity : Up to 2000 m3/hr & more
Material of Construction
- SS 316L
- SS 316
- SS 304
- Mild Steel (MS)
- Polypropylene
- Rubber lining on any metal
Type of Fitting
- PP Collar Bag
- Snap Band Bag
- SS Ring Bag
- Flange Collar Bag
End Connection
- NPT / BSP Threaded
- Flanged Table E / Table F
- ANSI B 16.5 Flanged
- DIN Standard
- Tri Clover Adaptors
